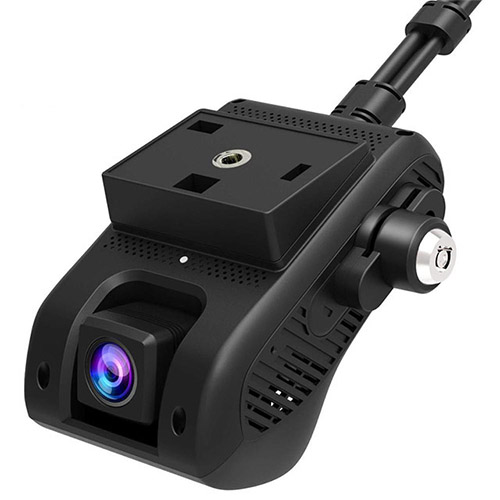

Product Name :JC400P

View times : 503

Pre product :

Next product :

Description:

Model:JC400P

Specifications:

Network Connection	Wi-Fi	802.11 b/g/n	2.4 GHz, Hotspot
	Eurasian Version	GSM & WCDMA & 4G	GSM: 850/900/1800/1900MHz
			WCDMA: B1/B2/B5/B8
			4G FDD: B1/B3/B5/B7/B8/B19/B20
			TDD: B38/B39/B40/B41 (100M)
	American Version	GSM & WCDMA & 4G	GSM: 850/1800/1900MHz
			WCDMA: B2/B4/B5
			FDD: B2/B3/B4/B5/B7/B12/B17
			TDD: B38/B41 (100M))
	Note: The difference in Eurasian Version and American Version lies in hardware. It is recommended to debug by version.
Hardware	CPU		ARM Cortex A53 @1.4GHz
	OS	Android	Android 8.1 GO
	Flash memory	RAM+ROM	LPDDR3 1GB+eMMC 16G
	Road-facing camera	AHD, 1080P, dynamic frame rate, 118° horizontal viewing angle
	Inward-facing camera	AHD, 720P, dynamic frame rate, 90° horizontal viewing angle
	GNSS module	GPS+BDS	Built-in ceramic antenna
	G-Sensor	Accelerometer, Gyroscope	6 axis
	MIC & Speaker	Built-in
	TF card	Max 256GB
I/O Configuration	ACC	Ignition detection
	Relay	Immobilization	Remote engine cut-off
	UART I/O (Extended I/O)	Open for RFID reader, fuel sensor, load sensor, temperature sensor
	SOS	Panic button
Power	Supply voltage	DC 9-30V	Suitable for cars, trucks, buses, electric automobiles, etc.
	External Battery	External Battery 450mAh	For emergency situation when car battery is disconnected
Size	Dimension	1096952 mm
	Weight	225g
