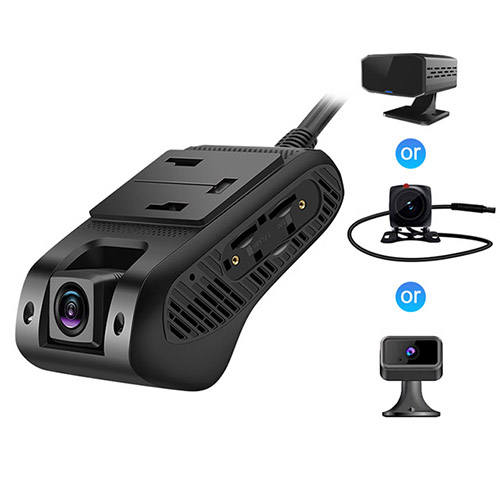

JC261
Description:
Model:JC261
Specifications:
| Network | |
| Standard | 4G LTE Cat.4 |
| WiFi | 2.4GHz, Support AP Mode/STD Mode/WiFi Direct |
| BT version | BT 4.0 |
| Band | Eurasian Version |
| LTE-FDD: B1/B3/B5/B7/B8/B19/B20 | |
| LTE-TDD: B38/B39/B40/B41 (100M) | |
| WCDMA: B1/B2/B5/B8 | |
| GSM: B2/B3/B5/B8 | |
| American Version | |
| LTE-FDD: B2/B3/B4/B5/B7/B12/B17 | |
| LTE-TDD: B38/B41 (100M) | |
| WCDMA: B2/B4/B5 | |
| GSM: B2/B5/B8 | |
| Camera | |
| Front Camera (Main) | 1920×1080/25FPS/F2.2/Full color/85° (HFoV) |
| Peripheral Camera (Optional ) | CI01: 1280×720/15FPS/F2.0/Full color in daytime & monochrome in dim light/100° (HFoV) |
| CI03: 1280×720/15FPS/F2.4/Full color in daytime & monochrome in dim light/119° (HFoV) | |
| CE01: 1280×720/15FPS/F2.0/Full color/IP67/125° (HFoV) | |
| JC170: 1280×720/15FPS/F2.4/Monochrome/56° (HFoV) | |
| Video Format | .ts |
| Configuration | |
| GNSS | GPS/BDS |
| Sensor | 3-axis |
| Microphone | Support |
| Speaker | Support |
| Interface | Micro USB*1, SOS*1, TTL*1, Relay*1 |
| Memory Support | TF card (Up to 256GB) |
| SIM Card Type | Nano |
| LED Indication | Red (Power), Blue (Cellular), Green (GNSS) |
| Others | |
| Power Supply | Power cable: B+/ACC/GND |
| Operating Voltage | DC 9–30V |
| Operating Temperature | –20°C to +65°C |
| Storage Temperature | –30°C to +85°C |
| Device Weight | 233g |
| Device Dimension | 109*69*52mm |
| Certifications | CE/FCC/RoHS |
