X3

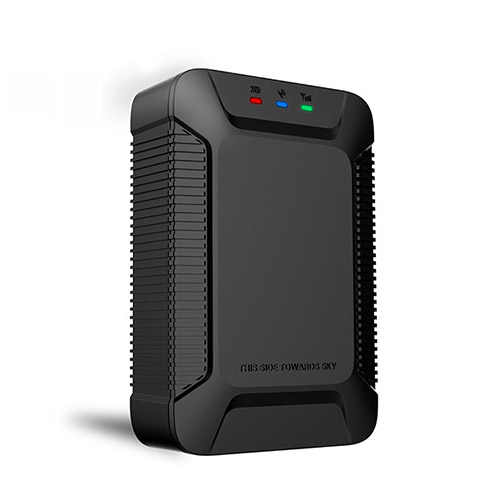

Model: X3 gps tracker
Key Features:
GPS tracker with real time position & tracking
SOS alarm
Geo-fence alarm
Remote Tele-cut off (petrol / electricity) function
Support ACC detection, real-time reporting car status
Built-in acceleration sensor for vibration/displacement/low battery/power off alert alarm
Multi ways to query position: SMS,APP ,Internet
Heat-resistant design: Special structure provides excellent heat dissipation
More Functions for optional:
RS232 & TTL: Support fuel level sensor, temperature sensor, RFID, etc
Door status detection: Get instant alert when car's door is opened unexpectedly
Multiple I/Os: Monitor and control external devices
Specifications:
| GSM Specification | |
| GSM frequency | 850/900/1800/1900 MHz |
| GPRS | Class 12, TCP/IP |
| Memory | 32+32Mb |
| Phase error | RMSPE<5,PPE<20 |
| Max output | GSM850/GSM900:33±3dBm |
| GSM1800/GSM1900:30±3Bm | |
| Max frequency error | ±0.1ppm |
| GPS Specification | |
| GPS chipset | MTK high sensitivity GPS chip |
| Frequency | L1,1575.42MHz C/A code |
| GPS antenna | Built-in, 25*25*4mm |
| Location accuracy | <10 meters |
| Tracking sensitivity | -162dBm |
| GPS channel | 66 |
| Acquisition sensitivity | -148dBm |
| TTFF (open sky) | Avg. hot start≤1sec |
| Avg. cold start≤35sec | |
| Others | |
| Voice monitor range | ≤5meters |
| Battery | 450mAh/3.7V Li-Poiymer battery |
| Working Voltage/current | 9-36VDC/45mA(12VDC), 28mA(24VDC) |
| Operating Temperature | -20℃~ 70℃ |
| Dimension | 80.9(L)*55.8.0(W)*23.4(H)mm |
| Weight | 95g |
