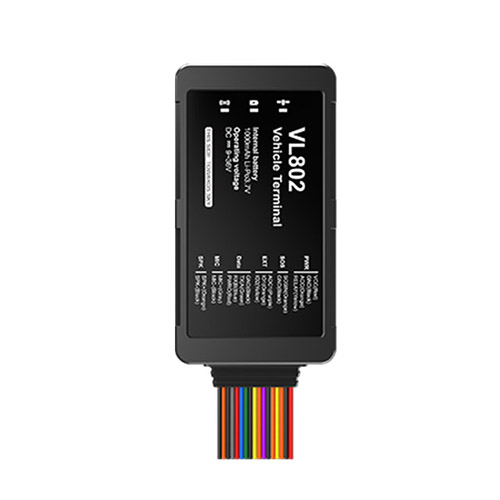

VL802
Description:
Model:JM-VL802
Feature:
1.LTE & GSM Network:4G and 2G network
2.remote cut off petrol;
3.SOS panic;
4.two way speaking;
5.remote listen-in;
6.Multiple Alerts;
7.450mAh/3.7V industrial-grade Li-Polymer battery
Technicial Parameter:
| GNSS | |
| Positioning system | GPS+BDS+WiFi |
| Frequency | L1 |
| Positioning accuracy | >2.5m CEP |
| Tracking sensitivity | -162dBm |
| Acquisition sensitivity | -160dBm |
| TTFF (open sky) | Avg. hot start ≤1sec |
| Avg. cold start ≤32sec | |
| Cellular | |
| Communication network | LTE CAT1/GSM |
| Frequency | VL802-E: |
| LTE-FDD: B1/B3/B7/B8/B20/B28 | |
| LTE-TDD: B34/B38/B39/B40/B41 | |
| GSM: 850/900/1800/1900MHz | |
| VL802-L: | |
| LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28 | |
| GSM: 850/900/1800/1900MHz | |
| Power | |
| Battery | 450mAh/3.7V industrial-grade Li-Polymer battery |
| Optional: 1,000mAh/3.7V | |
| Input voltage | 9-36VDC |
| Interface | |
| LED indication | GNSS (Green), Cellular (Blue), Power (Red) |
| SIM | Micro-SIM |
| Data storage | 16+16MB |
| Digital inputs | ACC, SOS |
| Digital outputs | Relay |
| Configurable I/O | 2 special I/Os can be configured as extra digital inputs or outputs |
| Physical specification | |
| Dimensions | 105 x 56 x 22mm |
| Weight | 120g |
| Operating environment | |
| Operating temperature | –20℃ to +70℃ |
| IP rating | IP65 |
| Feature | |
| Sensors | Accelerometer |
| Scenarios | SOS alert, Speeding alert, Abnormal vibration alert, Fatigue driving alert |
